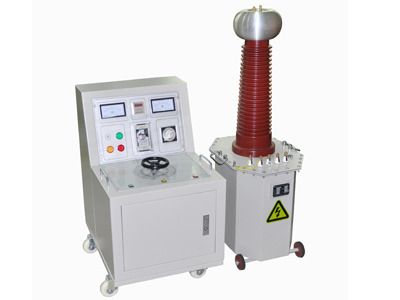

GDYD-M Manual AC/DC Hipot Test Set (Pointer Type)

수동타입 AC/DC Hipot

General information

Our AC/DC hipot test set with manual control is portable design.It meets wide voltage range from 0-500kV.There are three types of testing transformer for boosting in measurement,oil,gas and dry testing transformer.It is also used for AC,DC,AC/DC hipot testing.

Features

Monitoring high voltage side voltage,low voltage side current and indicating of zero position,power,operation,timing;
Over-current protection,zero-starting protection,sound and light alarm;
With new type time relay,time rang is more wider (1S ~ 99H);
Using the latest current relay, more accurate and reliable;
Test transformer high voltage coil is made by high quality polyester varnished wire and high voltage insulation material;
5kVA and above Testing Transformer with movable iron wheel. Light weight, small size, easy to move, superior performance.
